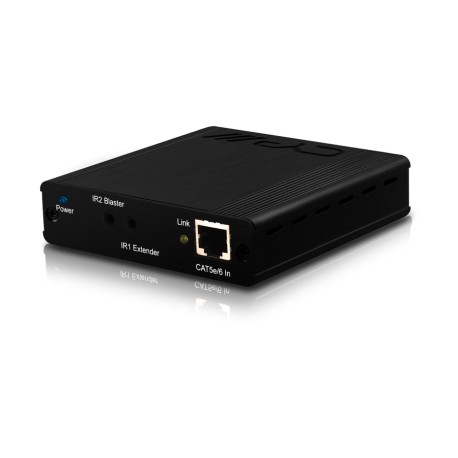

PU-507RX 5-Play HDBaseT receiver | CYP

PU-507RX

New

​​The PU-507RX Receiver allows uncompressed HDMI signals and IP data to be received over a Single CAT5e/6/7 cable. This device features full 5-Play convergence allowing the distribution of Video, Audio, LAN serving, Power over Cable (PoC), RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres. ​

More details

379,00 € per 1

Add to wishlist

Data sheet

Dimensions105 x 26 x 110 mm
ColorBlack
Weight260 gr
Input1 x RJ45 [1 x HDMI & Propriety Data] ; 1 x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Output1 x HDMI [Uncompressed AV and Data] ; 1 x 9pin Dsub [1x RS-232 Data] ; 1 x 3.5mm Stereo mini-jack [1x Infra Red Emitter] ; 1 x RJ45 [1x Ethernet (I/O) IP]

More info

  • HDCP 2.2 Compliant
  • Supports all v1.4 HDMI resolutions plus 4k.
  • Supports uncompressed video/audio up to 10.2Gbps
  • Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
  • HDMI, HDCP, & DVI compliant
  • Supports HDCP repeating and CEC functions
  • Supports 1080p distances up to 100 meters through CAT5e/6 cables
  • Uncompressed video 1080p, 60Hz, 48bits
  • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
  • 5-Play™ convergence: HDMI, LAN, PoC & Control (IR & RS232)
  • Supports 3D signals
  • Supports 4K/2K & 4K UHD - CAT5e/6 = 70m & CAT6a/7 = 100m
