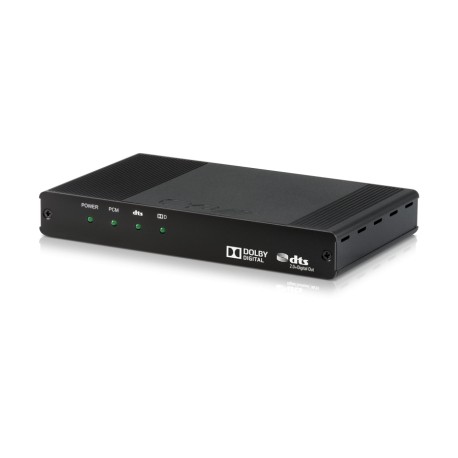

AU-1H1DD HDMI Audio Converter | CYP

€419.00

The AU-1H1DD is an advanced solution for de-embedding and down-mixing an audio signal from the HDMI input (up to Dolby® Digital and DTS® 2.0+Digital Out). Connect the AU-1H1DD between the source and your display via HDMI, and select 2CH LPCM or bypass. The digital audio outputs can be set to either 2CH LPCM or bypass. The L/R analogue outputs will always output down-mixed stereo (with audio up to Dolby® Digital and DTS® 2.0+Digital Out).

Quantity
Delivery in 3-5 days

  • HDCP 1.4 Compliant
  • Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
  • Supports simultaneous audio outputs on HDMI, analog R/L, Coaxial and Optical
  • Choose between HDMI bypass and 2 Channel audio using the HDMI output switch
  • Choose between SPDIF bypass and 2 Channel audio using the SPDIF output switch
  • Supports digital coaxial and optical audio sampling rate output up to 96kHz
  • Support Dolby Digital/DTS sampling rate up to 48kHz
  • DTS Digital Surround Decoder technology
  • Dolby Digital Decoder technology
CYP
AU-1H1DD

Data sheet

Dimensions
180 x 25 x 110 mm
Weight
368 gr
Input
1 x HDMI
Output
1x HDMI; 2x RCA ; 1x Toslink (1x Dolby Digital / DTS / 2 channel LPCM ); 1x coaxial ( Dolby Digital / DTS / 2channel LPCM )
Video formats
VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
HDMI
HDCP 1,4 compliant
Sound Technology
Support Dolby Digital/DTS sampling rate up to 48kHz
DTS Digital Surround Decoder technology
Dolby Digital Decoder technology
